3.3 - The SIM Grid

3.3.1 - Overview

In the SIM Cards module, the Object Grid is referred to as the SIM Grid.

Note:
The SIM Grid columns may have a different order in your Account.

The columns of the SIM Grid can be divided into the following areas:

  • Identifying elements
  • Billing Status Information
  • Data Session
  • Price Plan Information
  • Service Information
  • Activation Date
  • Groups Information
  • Information about Devices and where they are installed
  • APN Information
  • Custom Attributes (only if the corresponding feature is enabled - for details see the section Custom Attributes)

3.3.2 - Customisation

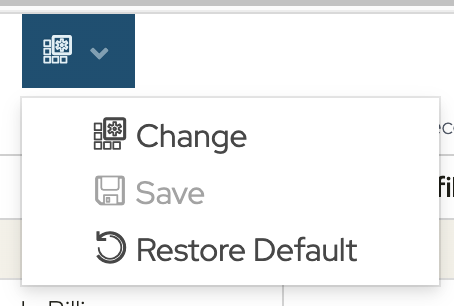

You may add or remove columns in the SIM Grid by clicking the 'Table Settings' button and choosing 'Change'.

sim_grid_table_Settings

Click and hold on the edge of a column heading to adjust the width.

Click and hold a column heading name to move the coloumn.

When you set up the SIM Grid, click the 'Table Settings' button again and 'Save' to save the layout. Please be aware that changes made will reset if you switch the veiw before saving.



3.3.3 - Identifying elements

  • EID: Unique identifier of the eSIM. By clicking on the EID, the grid will search and show all the eSIM Profiles linked to the EID.

Note:
The EID column is only populated if the ICCID is of Type eSIM Profile.

  • ICCID - Integrated Circuit Card ID
  • Type: Type of the SIM. Available values are: SIM, eSIM, eSIM Profile.
  • IMSI - International Mobile Subscriber Identity
  • MSISDN - Mobile Station International Subscriber Directory Number
